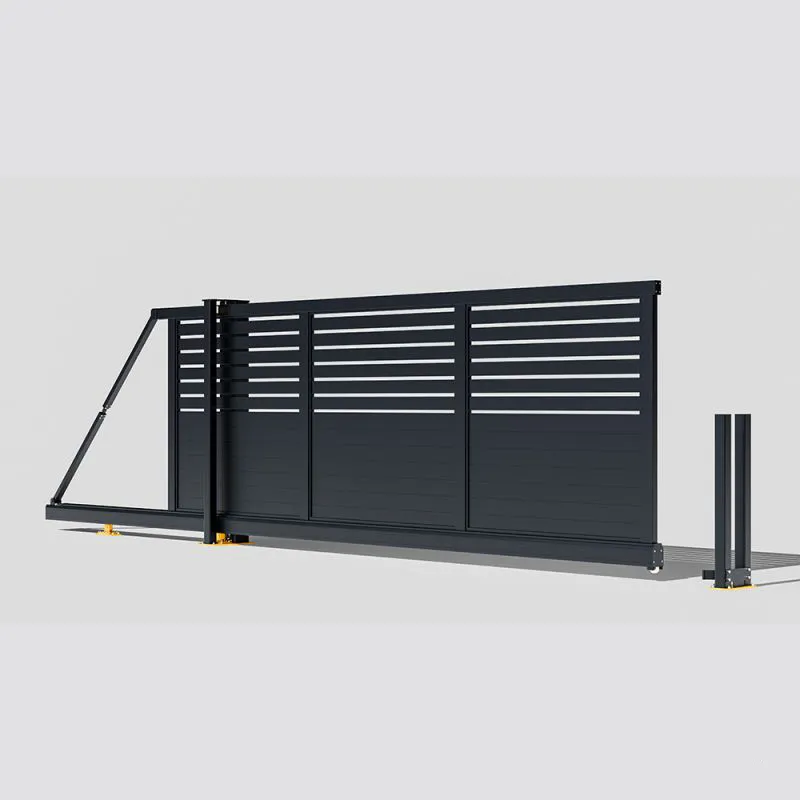

Aluminium Cantilever Sliding Gate (Full Horizontal Half Slat) with built-in Roger Technology TW90 Tower Sliding Gate Motor & Post Complete Kit (Black)

Description

Aluminium Cantilever Sliding gate With built-in Roger Technology TW90 Tower Sliding Gate Motor & Post Complete Kit

Aluminium sliding gate motor 600kg with prewired control unit designed to fit seamlessly into the gate sliding gate support post.

Electromechanical BRUSHLESS motor, low voltage, super intensive use, with SENSORED digital magnetic encoder at 4096 PPR, reversible, ideal for sliding gates

up to 600kg with digital controller series B70 in prewired plastic box.

Style: Full Horizontal Half Slat

Cantilever Material: Aluminium

Aluminium Thickness: 2.5mm

Paint Finish: Powder Coated

Cantilever Frame Colour: Black (RAL 9005)

Cantilever Frame Infill: Black (RAL 9005)

Complete cantilever sliding gate kit including the latest TW90 tower sliding gate motor from Roger Technology & all in 1 support post.

All cantilever gates listed as 1800mm high as standard. 1600mm & 2000mm also available. If you require an alternative size simply contact our team who’ll be able to build a bespoke quotation for you.

Roger Technology TW90/606/HS Tower Motor Specification:

Max gate weight:       600 kg

Power line supply:                    230V AC – 50Hz

Motor power supply:              24V

Power rating:                180W

Frequency of use:    Intensive use

Thrust:               250N

Operating temperature:       -20+55°C

Protection level:        IP44

Reductor Type:           Irreversible

Manoeuvre speed:                   25 m/min (0.42 m/s)

Limit switch:                 Without limit switches – optional

Onboard control unit:            B70/1T

Encoder:          Digital magnetic encoder SENSORED, 4096 PPR

Batteries recovery:                  Optional 2 internal battery 12V 1,2AH

Type exit gear:             Z15/mod 4

Operating cycles per day (opening/closing – 24 hours no stop):            800

Maximum dimension product in mm (L x W x H):             132 x 138,5 x 470
